Architecture Overview

Note

Looking for deployment instructions? See ../sysadmin/quickstart for step-by-step setup guidance.

NL-BIOMERO transforms OMERO into a comprehensive FAIR (Findable, Accessible, Interoperable, Reusable) platform for bioimage data management and analysis. This page provides a detailed technical overview of the system architecture.

System Architecture Diagram

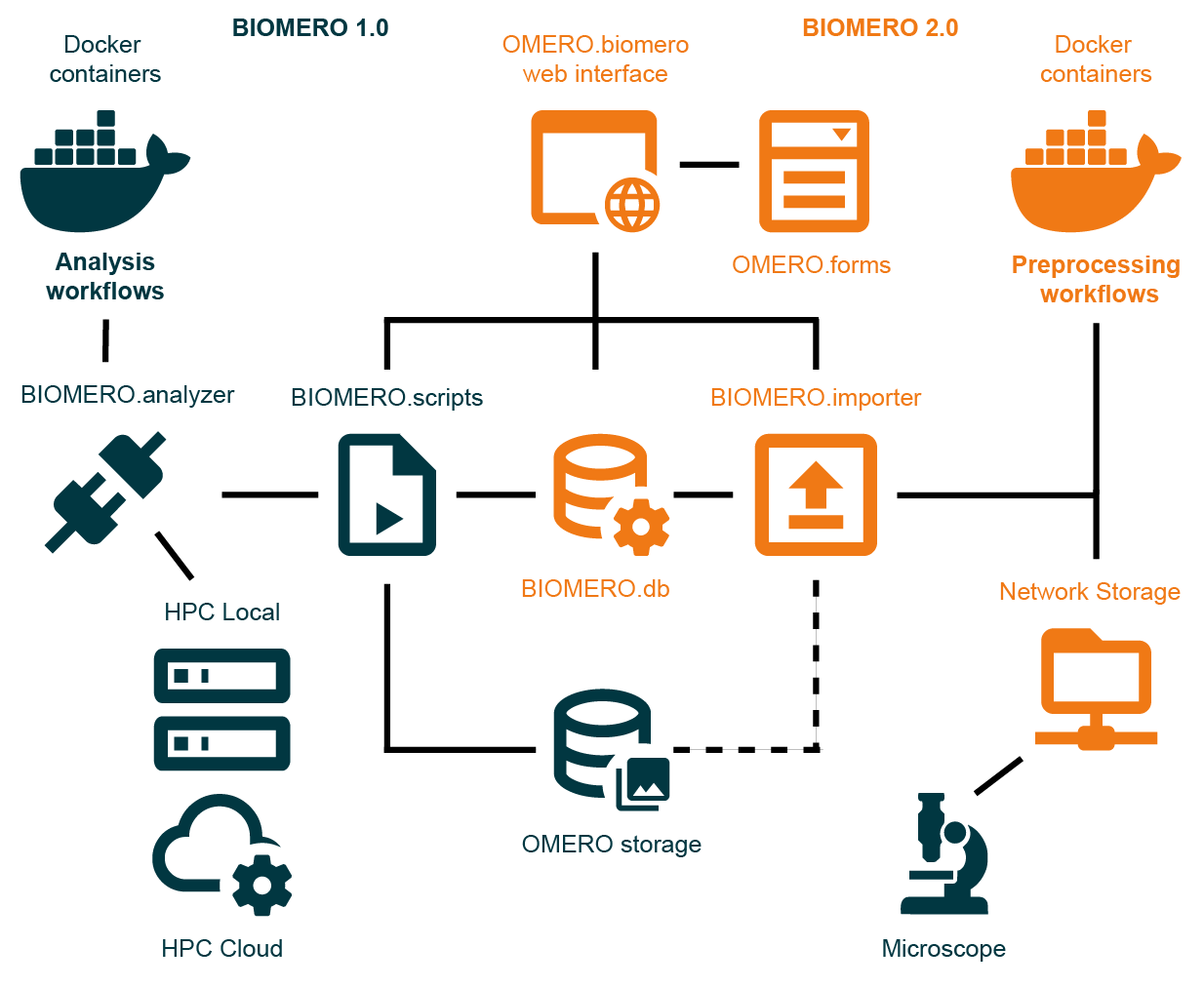

BIOMERO 2.0 System Architecture

BIOMERO 2.0 System Architecture - Complete overview showing the integration of containerized analysis workflows (BIOMERO 1.0), preprocessing workflows (BIOMERO 2.0), and the unified OMERO.biomero web interface with OMERO.forms for metadata collection.

Core Components

BIOMERO 2.0 Architecture Overview

The architecture consists of four main subsystems:

πŸ”¬ OMERO Infrastructure (Dark Blue)

Core image data management platform providing storage, metadata management, and user access control.

🧬 BIOMERO 1.0 - Analysis Workflows (Dark Blue)

Containerized analysis workflows orchestrated on remote HPC clusters or cloud environments for scalable compute processing.

πŸ“₯ BIOMERO 2.0 - Preprocessing Workflows (Orange)

Data import and preprocessing pipelines for automated, standardized data ingestion.

🌐 Unified Web Interface (Orange)

Modern web interface combining OMERO.biomero (importer + analyzer) and OMERO.forms for metadata collection.

Container Architecture

The platform uses Docker Compose to orchestrate these core services:

Core Infrastructure

  • omeroserver - Core OMERO server with BIOMERO.scripts integration

  • database - PostgreSQL database for OMERO metadata and image references

  • omeroweb - Enhanced OMERO.web with OMERO.biomero and OMERO.forms plugins

BIOMERO Services

  • biomeroworker - BIOMERO.analyzer processor for remote HPC workflow orchestration

  • database-biomero - PostgreSQL database for BIOMERO workflow metadata and provenance

  • biomero-importer - BIOMERO.importer service for in-place imports from remote storage, enabling users to import data via web interface without client-side uploads

  • metabase - Analytics dashboard for workflow monitoring and data visualization

Data Flow Architecture

In-Place Import Pipeline

  1. Remote Storage Access - Raw data stored on dedicated remote storage systems

  2. Web-Based Import Interface - Users trigger in-place imports via OMERO.biomero web interface

  3. Group-Based Access Control - Users see only their permitted storage areas (e.g., group-specific subfolders)

  4. BIOMERO.importer Processing - Metadata extraction and possible data conversions on remote storage

  5. Reference-Only Import - OMERO stores metadata and file references, raw data remains on remote storage

  6. OMERO.forms Integration - Additional metadata collection through custom forms, e.g. REMBI

Note

This eliminates the need for OMERO.insight client installations and prevents server storage bloat from user uploads. Previously, in-place imports were only available via command-line access on the OMERO server itself.

Analysis Pipeline

  1. Data Selection - Users select images/datasets via OMERO.biomero interface

  2. Workflow Configuration - Parameters set through web interface or BIOMERO.scripts

  3. BIOMERO.analyzer - Orchestrates workflow execution on remote HPC clusters

  4. Results Integration - Analysis outputs automatically imported back to OMERO

  5. Provenance Tracking - Complete analysis history stored in BIOMERO.db

Network Architecture

Internal Communication

  • Docker Networks - Secure internal communication between services

  • Database Connections - Direct PostgreSQL connections for metadata operations

  • Service APIs - RESTful APIs for inter-service data exchange

  • ICE Protocol - OMERO’s internal communication protocol for client-server interactions

  • OMERO.scripts - Internal OMERO-managed scripting engine and queue for workflow submission through BIOMERO.scripts to BIOMERO.analyzer

External Access Points

  • OMERO.web Interface - Port 4080 (HTTP) for web-based access

  • OMERO Server - Ports 4063/4064 for OMERO.insight and API access

  • Metabase Dashboard - Port 3000 for analytics and monitoring

  • SSH Tunneling - Secure connections to external HPC clusters

Storage Architecture

Persistent Storage

  • OMERO Binary Repository - Original image files with metadata linking

  • Database Volumes - PostgreSQL data for both OMERO and BIOMERO databases

  • Configuration Volumes - Persistent configuration files for services

  • Log Volumes - Centralized logging for troubleshooting and monitoring

Remote Storage Integration

  • Dedicated Storage Systems - Purpose-built storage infrastructure separate from OMERO server

  • Network File Systems - NFS/SMB mounts configured by system administrators

  • Group-Based Access - Users access only their permitted storage areas through web interface

  • In-Place Import Support - Direct metadata import without data duplication or transfer

  • Storage Offloading - Raw data remains on optimized storage, reducing OMERO server burden

Compute Integration

Demo/Development Environment

Warning

Local containerized execution is available for demonstration and development purposes only. It does not provide the full functionality, scalability, or compute offloading benefits of proper HPC integration. Production deployments should use dedicated HPC clusters.

  • Local Containers - Limited workflow execution for testing and development

  • Resource Constraints - Bound by local system CPU/memory limitations

  • Development Testing - Workflow validation before HPC deployment

HPC Integration (Production)

Note

This is the recommended and fully-supported production approach for BIOMERO.analyzer.

  • Slurm Integration - Job submission to institutional or cloud HPC clusters via SSH

  • SSH Key Management - Secure, automated authentication to cluster login nodes

  • Workflow Orchestration - Remote job monitoring, queue management, and result retrieval

  • Scalable Computing - True compute offloading with access to cluster resources

Security Architecture

Authentication & Authorization

  • OMERO Authentication - Centralized user management and permissions

  • SSH Key Authentication - Secure HPC cluster access

  • Database Security - Encrypted database connections and secure passwords

Data Protection

  • Network Isolation - Docker networks prevent unauthorized access

  • Encrypted Communication - TLS/SSL for web interfaces

  • Backup Integration - Backup strategies for critical data via mounted storage

Monitoring & Analytics

Workflow Monitoring

  • Real-time Status - Live workflow progress tracking via database and dashboard

  • Error Tracking - Comprehensive logging and error reporting persisting in the logs

  • Provenance - Unique UUIDs for each workflow run for traceability; detailed history stored in BIOMERO.db and OMERO metadata

Data Analytics

  • Usage Statistics - User activity and system utilization metrics

  • Performance Metrics - Workflow execution times and success rates

  • Custom Dashboards - Configurable analytics via Metabase, feel free to create your own reports!

Extensibility & Integration

Workflow Development

  • Container Standards - Standardized workflow container interfaces for interoperability

  • Parameter Schemas - JSON-based parameter definition system for interpretability

  • Open Source Workflows - Community-contributed analysis pipelines for findability, accessibility and reusability

API Integration

  • OMERO API - Full programmatic access to image data and metadata

  • BIOMERO API - Workflow submission, in-place import and monitoring endpoints

  • REST Interfaces - Modern web service integration points

Deployment Scenarios

For detailed deployment instructions, see:
