Answers pt 1 - NL-BioImaging Advanced Image Analysis Course 2026

First run the main notebook¶

%%capture
%run ./Image_processing_concepts_pt1.ipynb

Thresholding bacteria¶

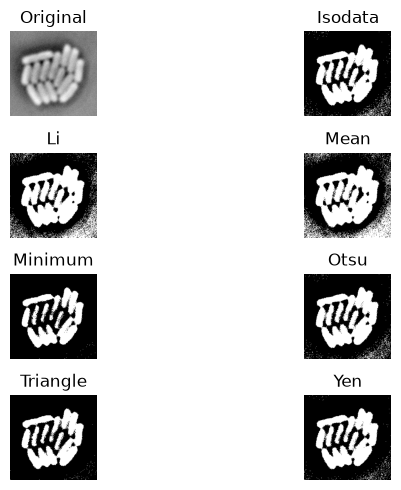

_ = sk.filters.try_all_threshold(img_ecoli, verbose=False)

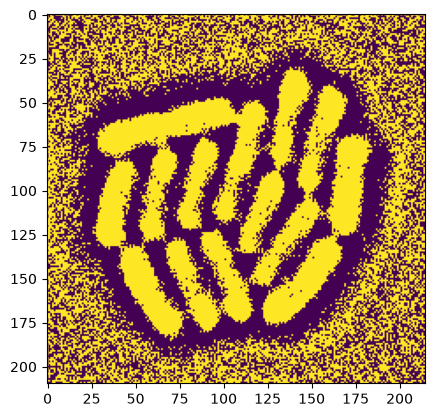

_ = plt.imshow(img_ecoli>sk.filters.threshold_local(img_ecoli, block_size=35, offset=0))

Conclusion¶

Some of these results are not bad, but none are directly usable. We’ll need more techniques to segment these bacteria.

Opening and closing¶

# Morphological closing (dilation followed by erosion)
img_pika_closed = \
    sk.morphology.closing(
        img_pika,
        footprint=sk.morphology.disk(7)
    )

# Show the result
_ = plt.imshow(img_pika_closed)
plt.show()

This filled the “hole” in the big circle. The footprint modification is needed to achieve this.

# Morphological opening (erosion followed by dilation)
img_pika_opened = \
    sk.morphology.opening(
        img_pika,
        footprint=sk.morphology.disk(7)
    )

_ = plt.imshow(img_pika_opened)
plt.show()

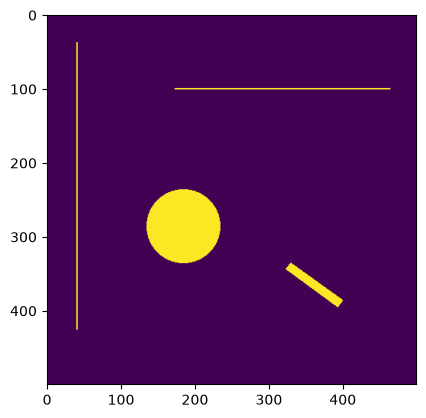

This removed everything (due to dilation), but kept the large structure. Also here, depending on the footprint size, different structures remain.

Thresholding¶

Identifying points¶

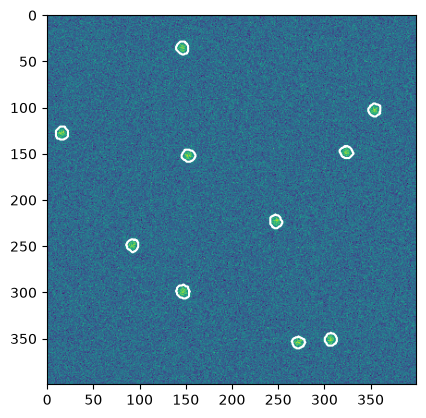

“Can you create a binary mask for the points in img_noisy?”

# Obtain a mask using simple Otsu threshold applied to median filtered image
# The median filtered image will contain high medians only when there was a local
# concentration of higher values, ie the spots.
mask_points = img_noisy_median>sk.filters.threshold_otsu(img_noisy_median)

# Show result
_ = plt.imshow(img_noisy)
_ = plt.contour(mask_points, colors='w', levels=[0.5])
    # plt.contour draws isolines at given levels, sometimes convenient for showing segmentation

Nuclear edges¶

“Can you create a binary mask that contains the edges of img_nuclei?”

There are many ways to do this, easiest is probably starting from the binary mask of the nuclei, and then getting to their outlines.

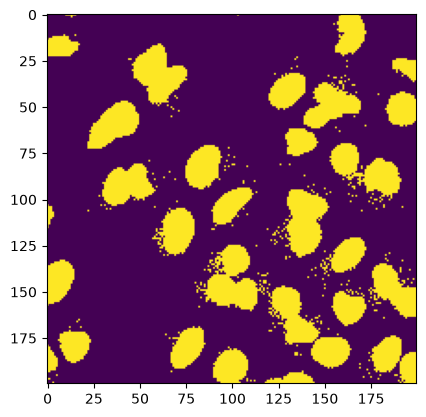

thresh_triangle = sk.filters.threshold_triangle(img_nuclei)
mask_nuclei = img_nuclei > thresh_triangle
_ = plt.imshow(mask_nuclei[0:200,0:200])

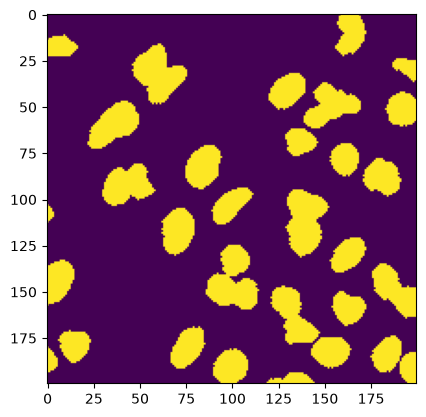

# First remove small features, mophological opening
mask_nuclei_opened = sk.morphology.opening(mask_nuclei, footprint=sk.morphology.disk(2))
_ = plt.imshow(mask_nuclei_opened[0:200,0:200])


# Now erode that mask (removing the edges, keeping center parts)
mask_nuclei_eroded = sk.morphology.erosion(mask_nuclei_opened, footprint=sk.morphology.disk(2))

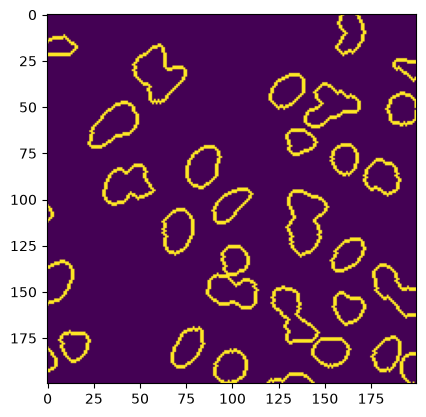

# Then subtract the center parts from the original mask
mask_nuclei_edges  = np.logical_and(mask_nuclei_opened, ~mask_nuclei_eroded)

_ = plt.imshow(mask_nuclei_edges[0:200,0:200])

# Now visualize the result
_ = plt.imshow(img_nuclei[0:200,0:200])
_ = plt.imshow(mask_nuclei_edges[0:200,0:200],
               alpha = (mask_nuclei_edges[0:200,0:200]>0)*1.0, cmap="gray")
                # We use the "alpha" argument to set transparency of this
                # plot layer.
                # See also:
                # https://matplotlib.org/stable/api/_as_gen/matplotlib.pyplot.imshow.html

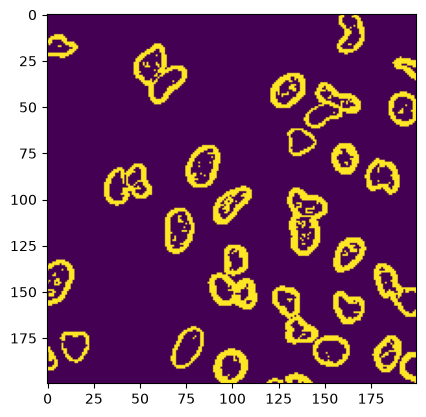

Nuclear edges (alternative 2) -- applying threshold to the edge mask¶

threshold_edgesnuclei_otsu = sk.filters.threshold_otsu(img_edges)
edge_mask2 = img_edges>threshold_edgesnuclei_otsu
_ = plt.imshow(edge_mask2[0:200,0:200])
