First run the main notebook¶
%%capture
# Run the main notebook up to the "Extra" section, which needs an extra download
import json
notebook = json.load(open("01_stardist.ipynb", encoding="utf-8"))
for cell in notebook["cells"]:
source = "".join(cell["source"])
if source.startswith("# Extra"):
break
if cell["cell_type"] == "code":
get_ipython().run_cell(source)WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1789991800.363327 441433 port.cc:153] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.
I0000 00:00:1789991800.364590 441433 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.
I0000 00:00:1789991800.496628 441433 cpu_feature_guard.cc:227] This TensorFlow binary is optimized to use available CPU instructions in performance-critical operations.
To enable the following instructions: AVX2 AVX512F AVX512_VNNI AVX512_BF16 FMA, in other operations, rebuild TensorFlow with the appropriate compiler flags.
WARNING: All log messages before absl::InitializeLog() is called are written to STDERR
I0000 00:00:1789991803.420884 441433 port.cc:153] oneDNN custom operations are on. You may see slightly different numerical results due to floating-point round-off errors from different computation orders. To turn them off, set the environment variable `TF_ENABLE_ONEDNN_OPTS=0`.
I0000 00:00:1789991803.421786 441433 cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.
E0000 00:00:1789991806.214237 441433 cuda_platform.cc:52] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
Exercise: What happens if you do not normalize?¶

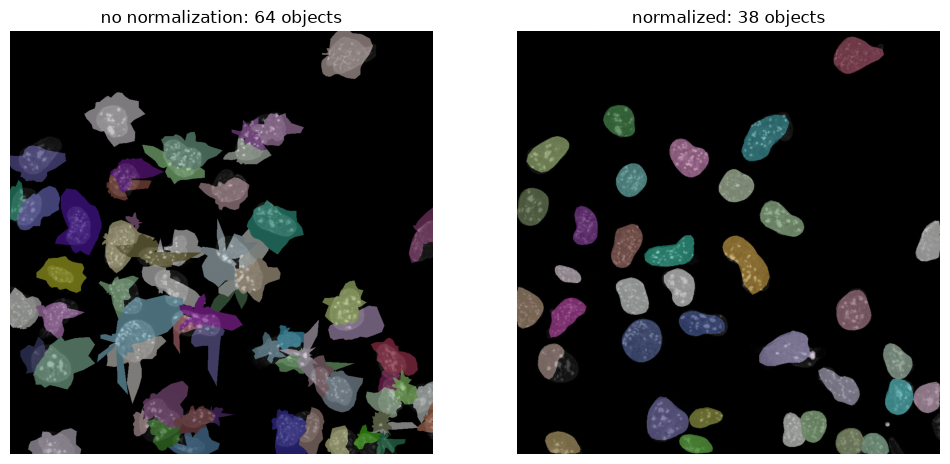

Predicting on the raw image finds far more “nuclei”, but they are wrong: the model detects the bright foci and on noise, and it misses the dimmer nuclei.
# Predict on the raw (unnormalized) image, same scale as before
labels_raw, _ = model.predict_instances(img_nuclei, scale=0.5)
print(f"raw image : {labels_raw.max()} objects")
print(f"normalized image: {labels.max()} objects")
fig, axs = plt.subplots(1, 2, figsize=(12, 6))
_ = axs[0].imshow(img_nuclei, cmap="gray")
_ = axs[0].imshow(labels_raw, cmap=lbl_cmap, alpha=0.5)
_ = axs[0].set_title(f"no normalization: {labels_raw.max()} objects")
_ = axs[1].imshow(img_nuclei, cmap="gray")
_ = axs[1].imshow(labels, cmap=lbl_cmap, alpha=0.5)
_ = axs[1].set_title(f"normalized: {labels.max()} objects")
for ax in axs:
_ = ax.axis("off")base.py (406): Predicting on non-float input... ( forgot to normalize? )
raw image : 64 objects
normalized image: 38 objects
The network was trained on images with intensities between roughly 0 and 1, while our raw image contains values between 3 and 208. The numbers entering the network are then far outside the range it has seen, and the prediction is unreliable.
Normalization also makes the result independent of exposure time: an image taken twice as bright gives the same input to the network after normalization.
Exercise: Which scale works best?¶

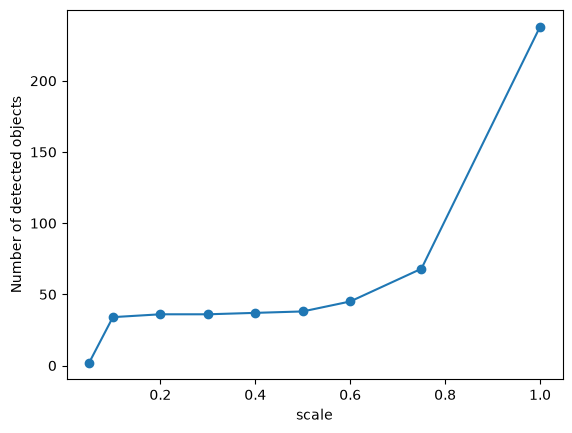

Count the objects for a range of scales and look at where the curve flattens out.
scales = [0.05,0.1,0.2, 0.3, 0.4, 0.5, 0.6, 0.75, 1.0]
counts = []
for s in scales:
lab, _ = model.predict_instances(img_nuclei_norm, scale=s)
counts.append(lab.max())
print(f"scale {s:4.2f} -> {lab.max():4d} objects")
_ = plt.plot(scales, counts, "o-")
_ = plt.xlabel("scale")
_ = plt.ylabel("Number of detected objects")scale 0.05 -> 2 objects
scale 0.10 -> 34 objects
scale 0.20 -> 36 objects
scale 0.30 -> 36 objects
scale 0.40 -> 37 objects
scale 0.50 -> 38 objects
scale 0.60 -> 45 objects
scale 0.75 -> 68 objects
scale 1.00 -> 238 objects
Between 0.2 and 0.5 the count barely changes (36 to 38 objects). From 0.6 upwards it climbs steeply, because single nuclei are broken into fragments.

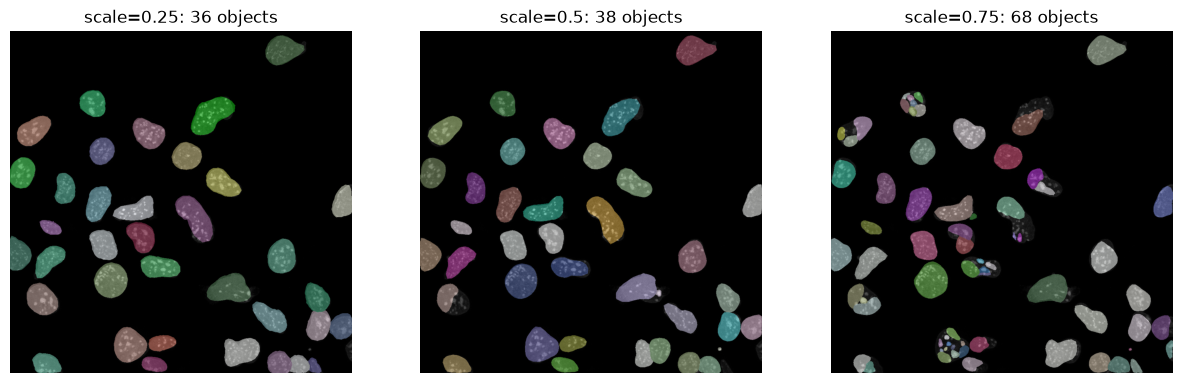

# Look at the two ends of the curve next to the value we chose
fig, axs = plt.subplots(1, 3, figsize=(15, 5))
for ax, s in zip(axs, [0.25, 0.5, 0.75]):
lab, _ = model.predict_instances(img_nuclei_norm, scale=s)
_ = ax.imshow(img_nuclei, cmap="gray")
_ = ax.imshow(lab, cmap=lbl_cmap, alpha=0.5)
_ = ax.set_title(f"scale={s}: {lab.max()} objects")
_ = ax.axis("off")
